TPdfObject.X

Declaration

property X: Double;

Description

Specifies the left position of an object (in PDF points).

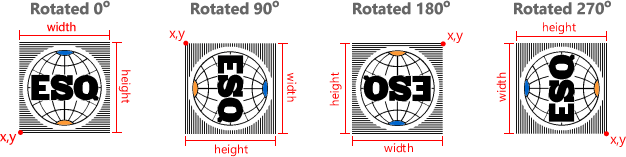

PDF Y values are Bottom-up, so (X,Y) specifies the bottom-left of the object onscreen.

Note:
◼ The object matrix is used to calculate and set the value
◼ You can also use Translate to move an object
◼ You must call ImageEnView1.Invalidate() after setting the position

Read/write

Example

// Move an object left
obj := ImageEnView1.PdfViewer.Objects[idx];
obj.X := obj.X - 10;
ImageEnView1.Invalidate();

// Which is the same as...
ImageEnView1.PdfViewer.Objects.Translate( -10, 0 );
ImageEnView1.Invalidate();


// Move an object right
obj := ImageEnView1.PdfViewer.Objects[idx];
obj.X := obj.X + 10;
ImageEnView1.Invalidate();

// Which is the same as...
ImageEnView1.PdfViewer.Objects.Translate( 10, 0 );
ImageEnView1.Invalidate();

See Also

◼ Y
◼ Width
◼ Height
◼ Matrix
◼ Scale
◼ Translate
◼ TransformEx

---
