 About TIEVisionTemplateMatchMethod		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

nuheroglu

Turkey
4 Posts
Posted - Jul 09 2023 :  15:54:04  Show Profile  Reply
Hello

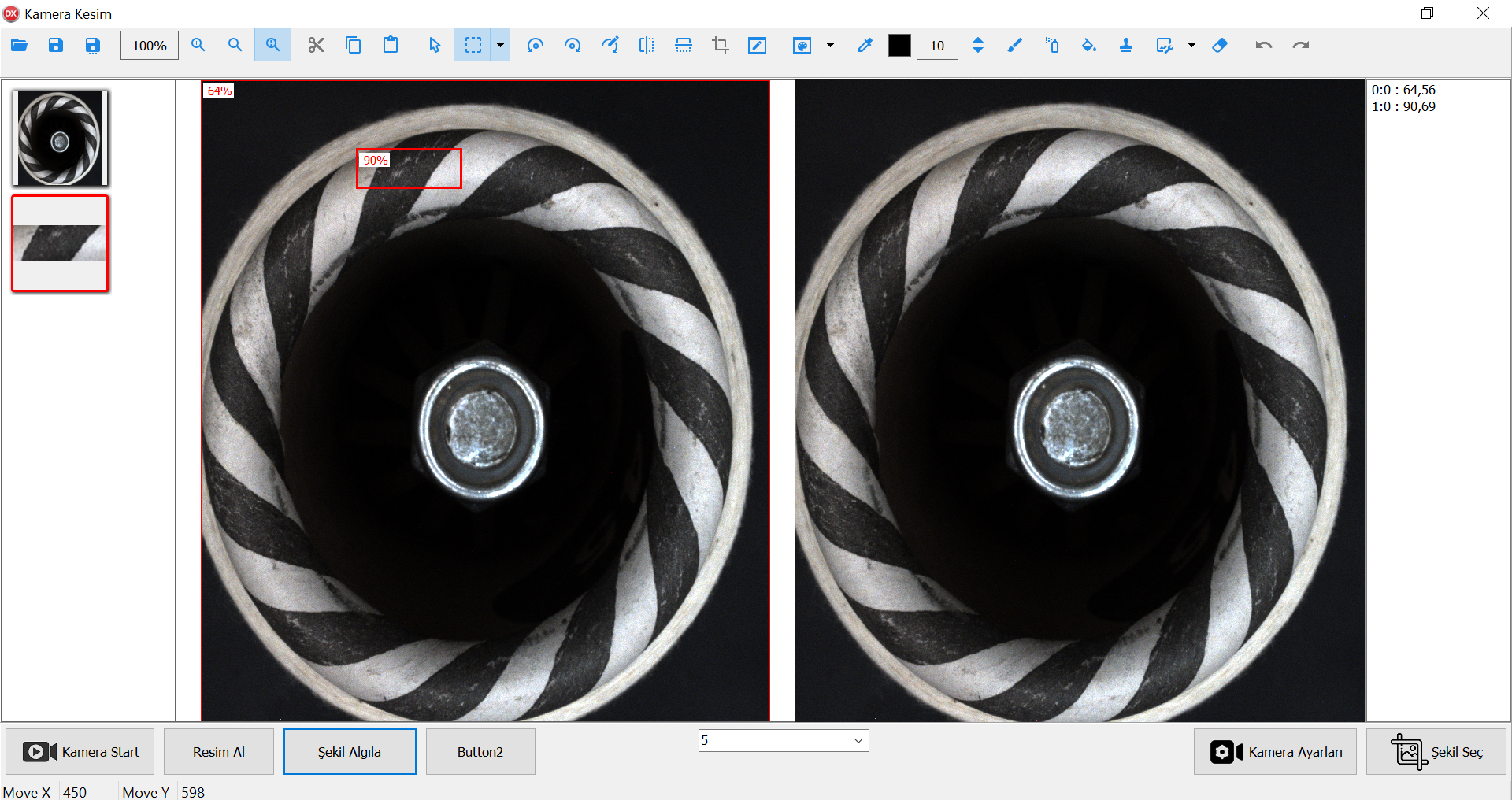

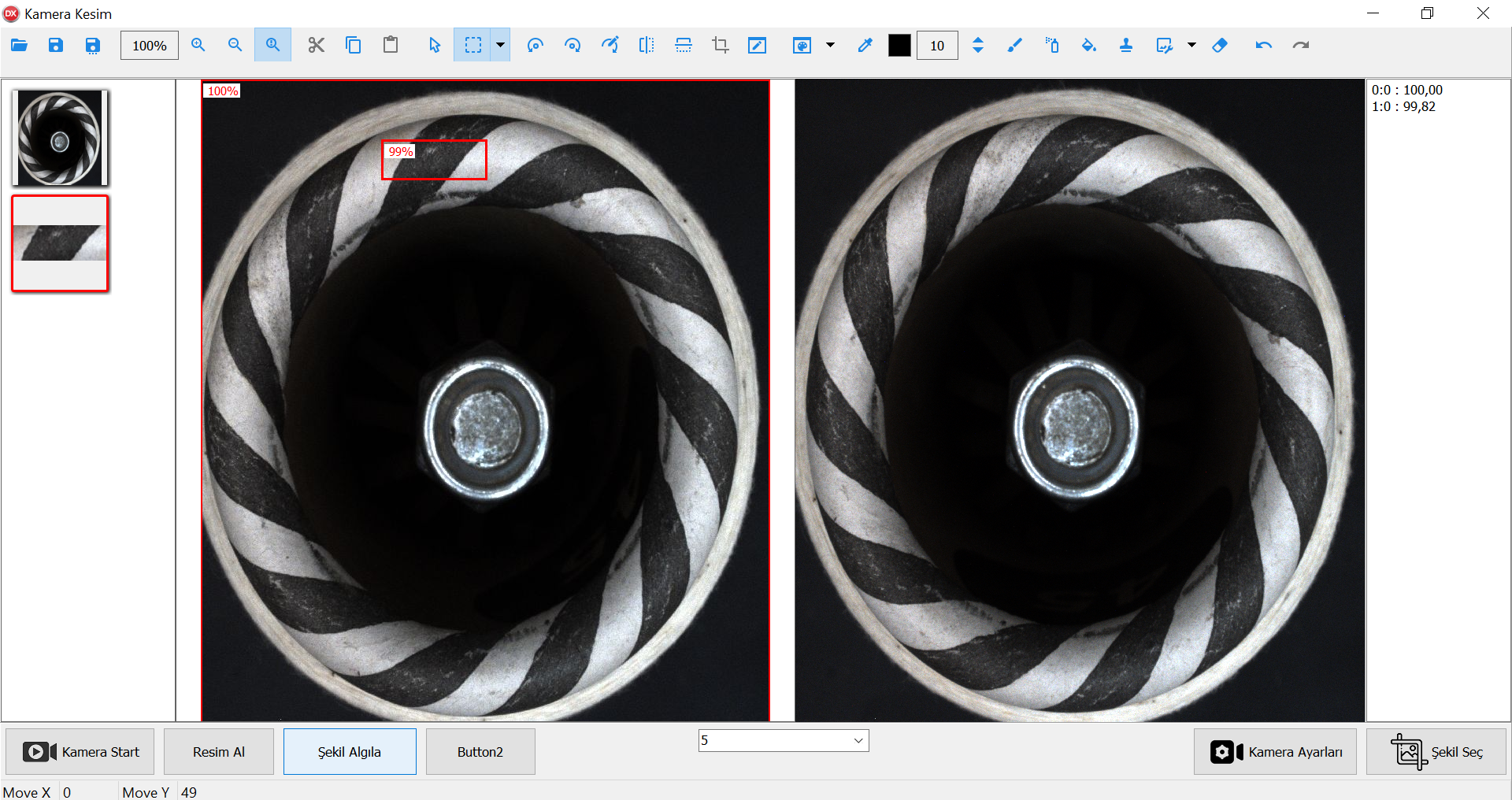

I'm having some problems using the TIEVisionTemplateMatchMethod. The accuracy rate of the shape I am looking for in the source image varies according to the image I get from the camera. Could you give more information about how this method works? I have added examples of shapes to be searched with source shape. I also want to validate the shape I want to search in terms of color. Will upgrading my version solve this problem?





nsmuhendislik

xequte

38217 Posts
Posted - Jul 09 2023 :  21:00:07  Show Profile  Reply
Hi

In terms of this feature, please see:

https://docs.opencv.org/4.x/d4/dc6/tutorial_py_template_matching.html
https://docs.opencv.org/3.4/de/da9/tutorial_template_matching.html

Upgrading is unlikely to improve the matching unless you are using a particularly old version of IEVision.

Nigel
Xequte Software
www.imageen.com
