 Modified PDF shows font in different color
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

yeohray2

Malaysia
102 Posts

Posted - Jun 03 2024 :  06:50:29  Show Profile  Reply

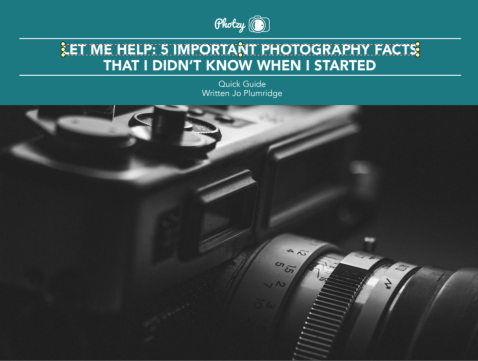

Using the PDFPageObjects demo and iepdf32.dll (125.0.6406.0) and ImageEn 13.2, I loaded a PDF file.



I changed the text.

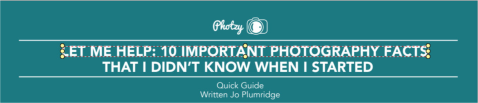

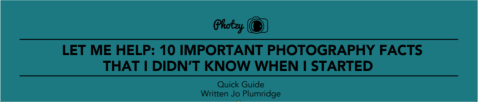

I then applied the changes, and saved the modified PDF. When I open the modified PDF, the font color is in black.



You can download the PDF file here - https://drive.google.com/file/d/1JPhfrAoPqpaTe1ZIcndtX7M1S-XJ7PUs/view?usp=drive_link

Is there some setting I need to apply to preserve the font properties?

Thanks.

Ray Mond

xequte

38319 Posts

Posted - Jun 04 2024 :  00:22:51  Show Profile  Reply
Hi Ray

That looks to be a quirk of PDFium. You might want to explicitly set the Text fill color when you update the text:

ImageEnView1.PdfViewer.Objects[ImageEnView1.PdfViewer.SelectedObject].FillColor := color;

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

yeohray2

Malaysia
102 Posts

Posted - Jun 04 2024 :  02:21:19  Show Profile  Reply
Hi Nigel,

Noted, thanks.

Ray
